Nexus Soft Armour utilizes SB51 Dyneema® unidirectional fabric, delivering significantly greater stopping power than traditional woven aramid armour. The unidirectional construction allows for superior energy absorption, resulting in shallower and wider backface deformation and greatly reduced Blunt Trauma Injury (BTI) to the end user.
Dyneema® is inherently water resistant and unaffected by moisture. For added protection, all Nexus panels are heat-sealed inside a protective cover, providing additional resistance to water ingress and UV exposure.
Manufactured in the United Kingdom.
NIJ Level IIIA Certified
Stops:
6 × 9mm FMJ RN @ 436 m/s
6 × .357 SIG @ 448 m/s
6 × .44 Magnum SJHP @ 436 m/s
Fragmentation Protection
V50 Fragmentation: > 630 m/s
Tested in accordance with STANAG 2920 using 1.1 g FSP
This exceeds standard NATO issue fragmentation performance by approximately 30%, offering enhanced protection against shrapnel from IEDs, grenades, and secondary fragmentation threats.
NIJ Maximum Allowance: 44 mm
Nexus Average BFS: ~25 mm
This significant reduction greatly minimizes blunt force trauma, reducing the likelihood of severe bruising or bone injury.
Fabric: SB51 Dyneema® (Unidirectional)
Areal Density: 5.3 kg/m²

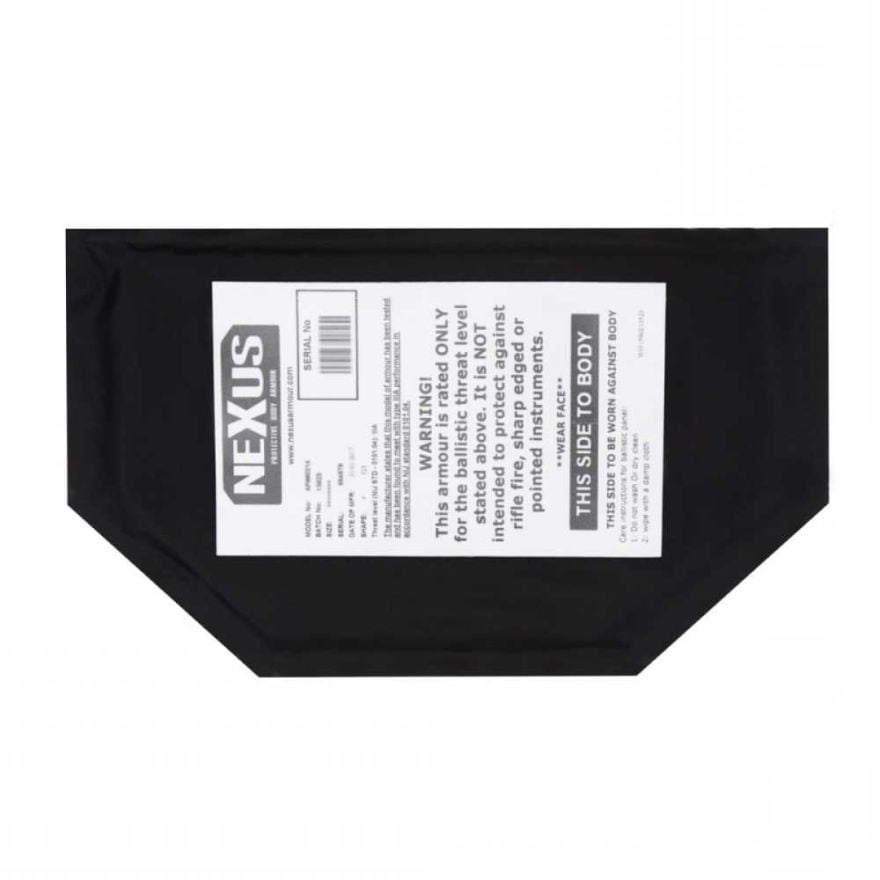

Panel Finish: Heat-sealed protective cover
Water Resistance: Excellent
UV Protection: Yes
Country of Origin: United Kingdom
Side Panels: 0.2 kg × 2
Front Panel: 0.45 kg
Back Panel: 0.45 kg
Total System Weight: 1.3 kg (2.86 lbs)
Designed specifically for:
Warrior Drop Down Velcro Pouch
Warrior Laser Cut Drop Down Velcro Pouch

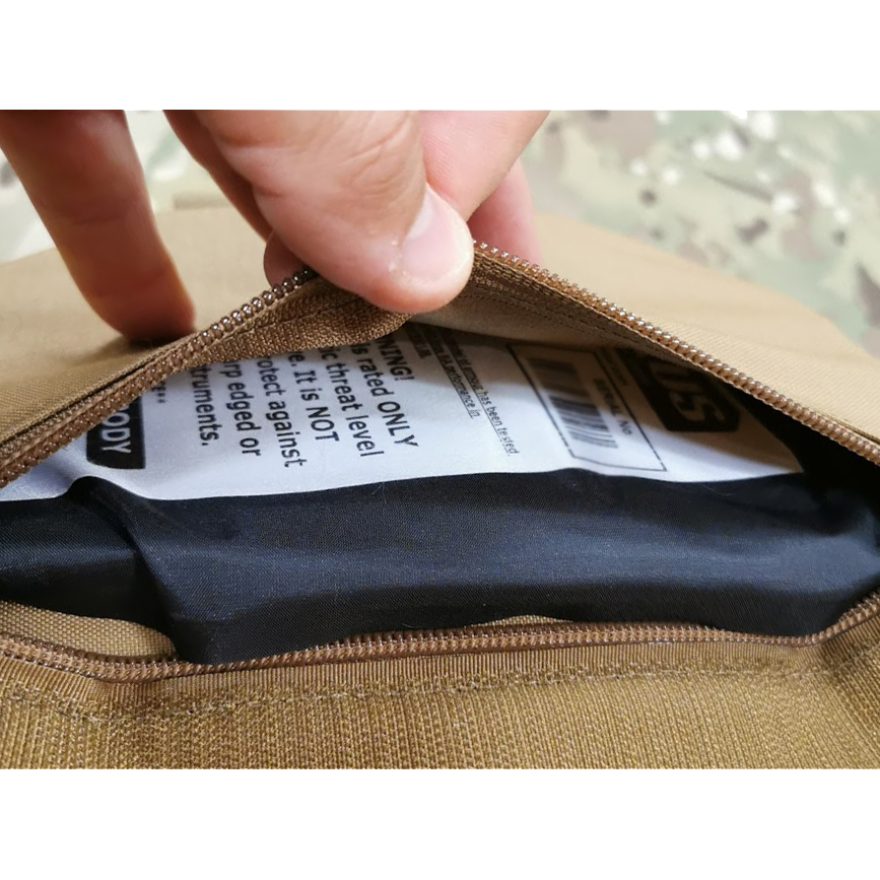

Panels fit securely into the rear zip compartment of the pouch.
NIJ Level IIIA + high-velocity fragmentation protection
Reduced blunt trauma compared to standard soft armour
Lightweight, low-profile design
Superior performance against handgun threats and 9mm SMG (MP5)
Enhanced protection from explosive fragmentation
